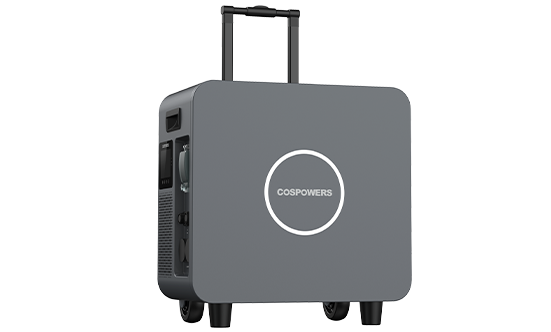

PowerPorter-CR5000-5

Extremely simple, elegant, and modern design
Draw-bar box design for easy mobility; plug-and-play functionality with simple operation
Equipped with multiple electrical protection features; safe and reliable with high-quality LFP cells ensuring long-term stability
Supports monitoring through ISO-certified systems and Android applications
Built-in 5.12kWh battery capacity for extended power supply
Multiple AC power outlet options for versatile and convenient usage
Supports multiple charging modes: eco-friendly solar charging and traditional mains charging
Various operating modes to meet the needs of different application scenarios

Description

Parameters/Model		CR5000-5
ACinput parameters	AC input range	170~280V
	AC input frequency	50/60Hz
	AC max charge current	60A(0~60A settable)
PV input parameters	Recommended PVmax power	4400W
	OCV	145V
	MPPT voltage range	60~115V
	Maximum charging current	80A
Battery Parameters	Rated voltage	51.2V
	Voltage range	45~57.6V
	Energy	5120Wh
	Max discharge rate	1C
	Max charge rate	0.5C
	Battery type	LFP
ACoutput parameter	Rated power	5000W
	Surge power	10000VA
	Rated output voltage	220/230/240Vac
	Output current	22A
	Rated frequency	50/60Hz
	Operating temperature range	0~55℃
Operating conditions	Storage temperature range	-15~60℃
	Humidity	5~95%
	Heat dissipation method	Air cooling
	Weight	66Kg
	Size(WDH)	540532316mm
	Protection level	IP20
	Communication method	RS485/WIFI
Others	Certification	IEC62619、IEC62109、CE-EMC

*The specifications shall prevail
